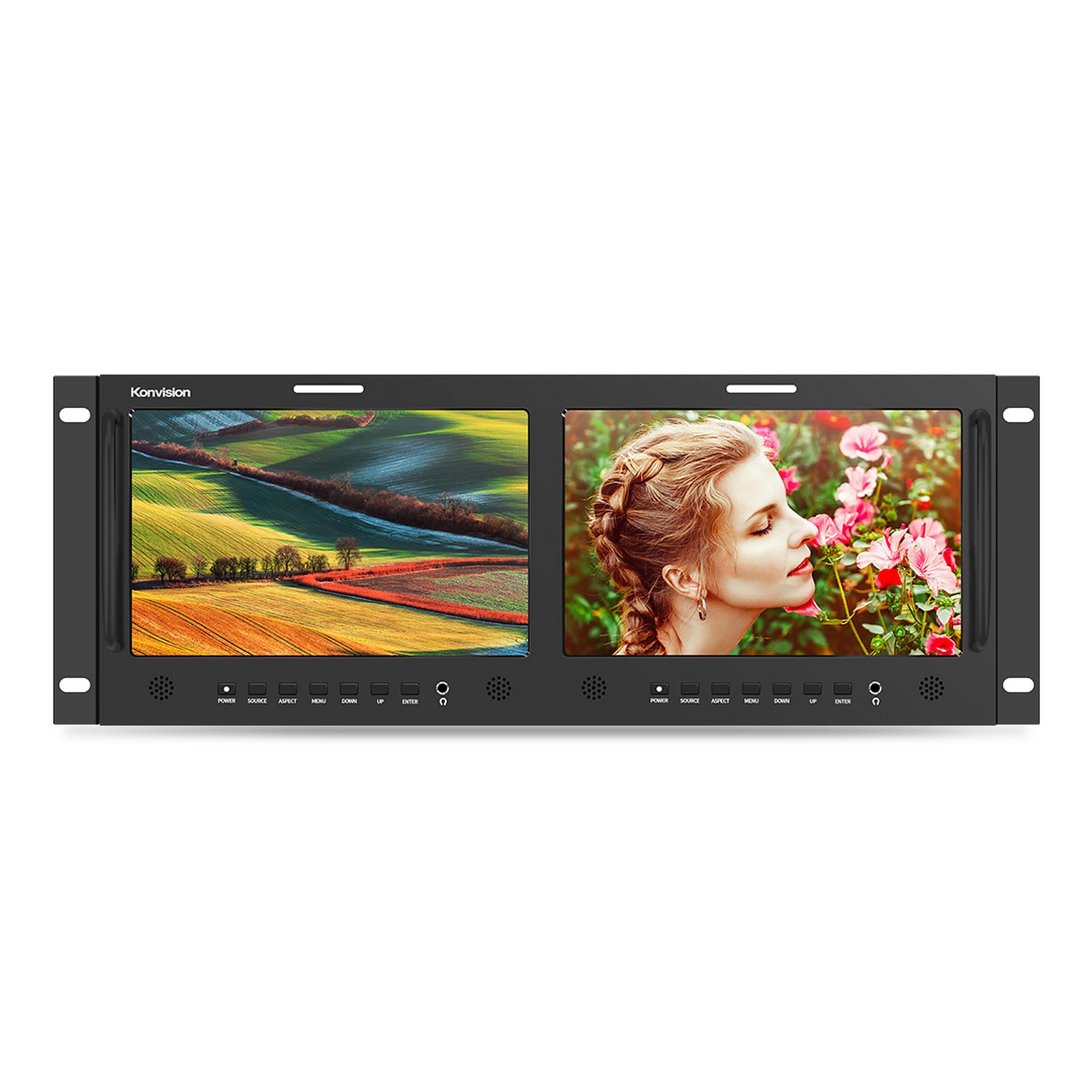

The Konvision KRM - 902A is a top - notch 4RU dual rack - mount monitor with two 9 - inch IPS LCD panels. It offers a stunning FHD 1920x1200 resolution and a wide 170 - degree viewing angle, ensuring clear visuals from various positions. With 3D LUT color calibration, it's compatible with ColorSpace and Calman software and uses a K10 - A probe for accurate color. It can also work with universal colorimeters. The monitor supports waveform, vectorscope, and audio meter display, making it perfect for OB trucks and studios. Key features include composite video input, markers with time code, audio meter and UMD, Ethernet, 12 - bit video processing, 1x3G/HD - SDI input and output for each screen, and built - in DC and AC power. Technical specifications show a 16:10 aspect ratio, 16.7M color depth, 500cd/m2 brightness, and an 800:1 contrast ratio, with a long lifespan of over 50,000 hours. It has multiple input and output options and supports a wide range of SDI formats.

Using the Konvision KRM - 902A monitor is quite straightforward. First, connect the power cord to either a DC 12V source or an AC 100 - 240V 50/60Hz outlet. Then, connect your video source to the appropriate input, like the SDI, analog video, or HDMI (optional). You can use the monitor's controls to adjust settings such as color and display modes. When it comes to the waveform and vectorscope features, these are great for checking the quality of your video. If the luminance exceeds the preset value, you'll see red marks on the waveform. As for the audio, you can connect headphones to the 3.5mm jack or use the built - in speakers. Just be aware that the operating temperature should be between - 10 degrees Celsius and 50 degrees Celsius. To maintain the monitor, keep it clean by using a soft, dry cloth. Avoid exposing it to direct sunlight or extreme humidity. If there's no signal input for a while, the monitor will automatically enter power - saving mode to save energy.
