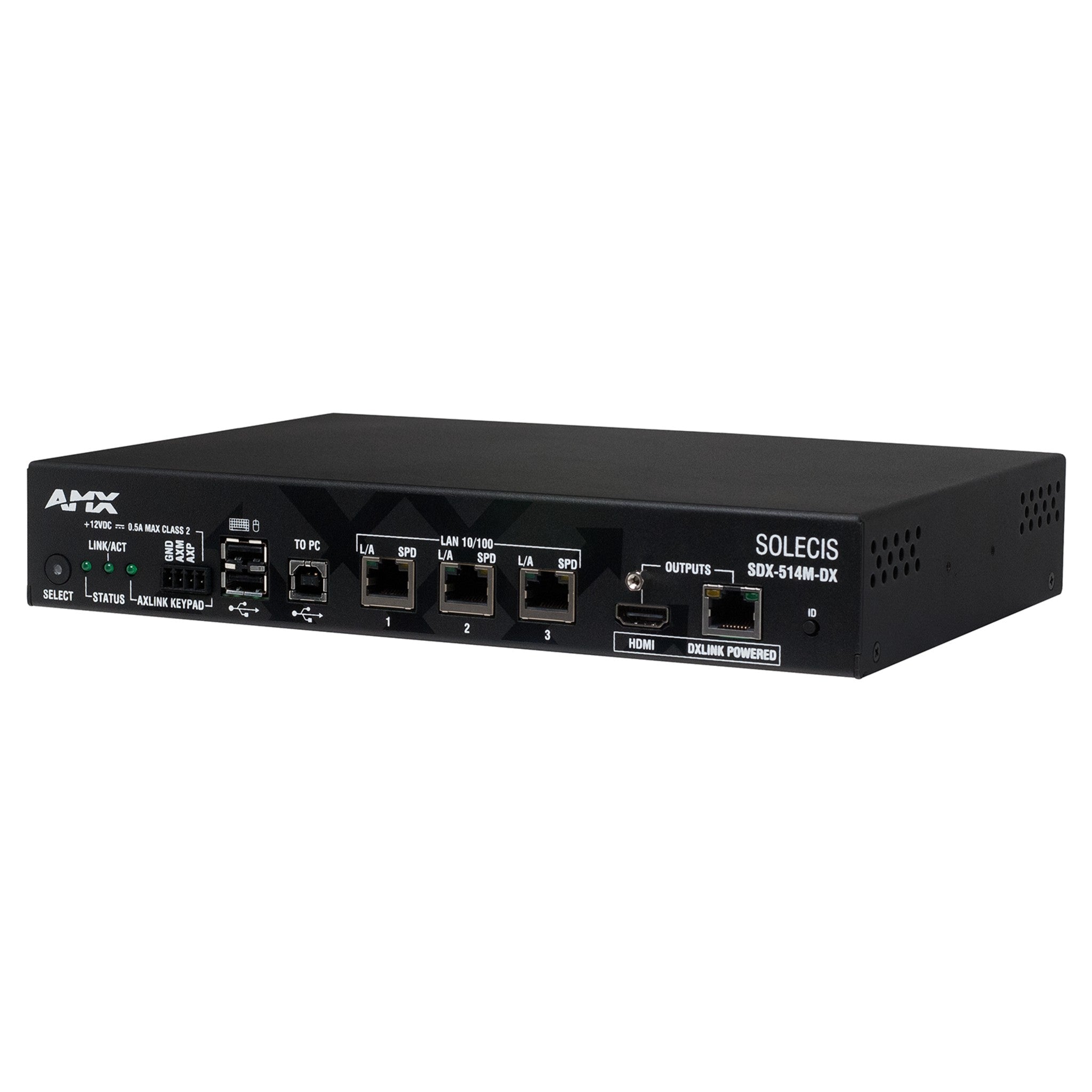

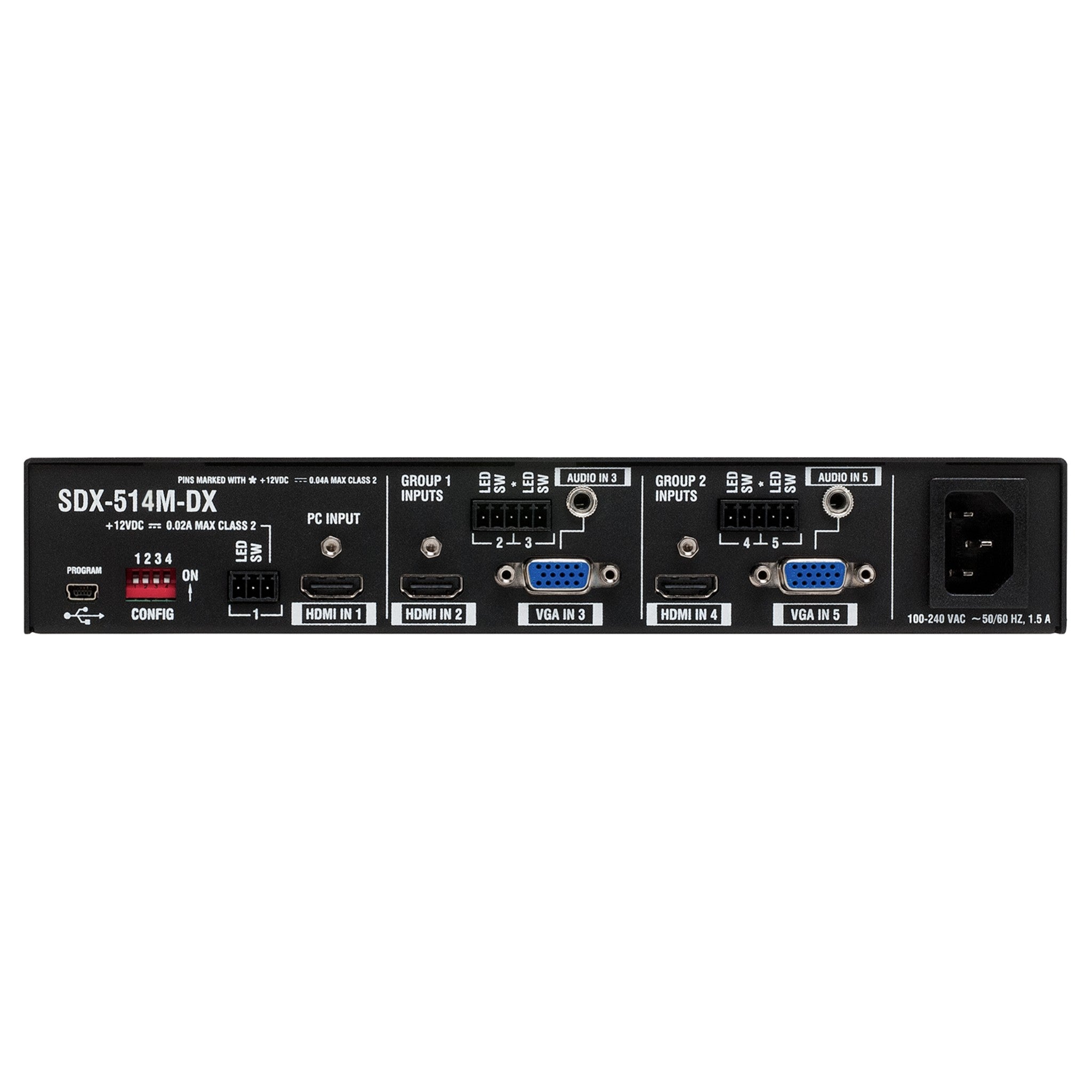

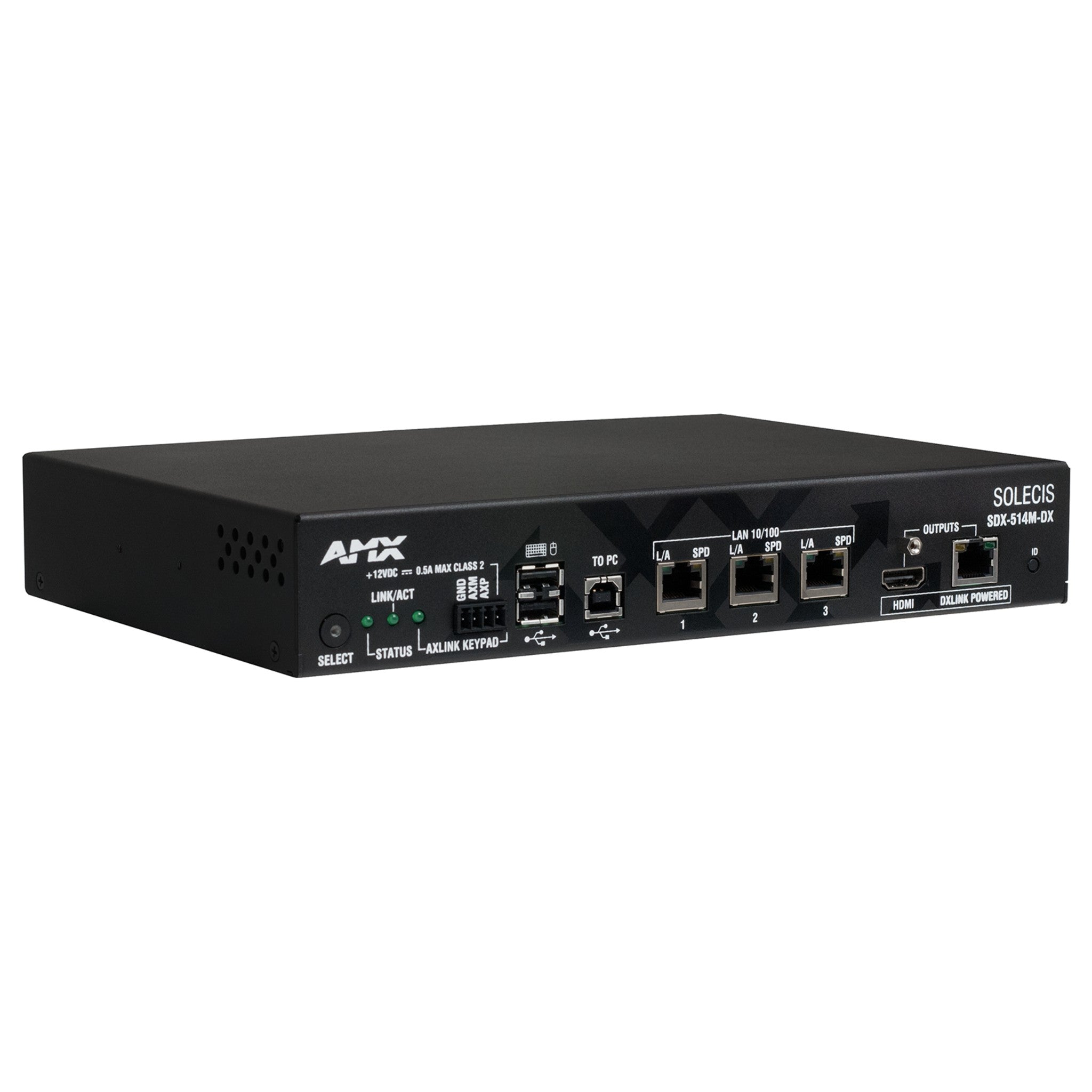

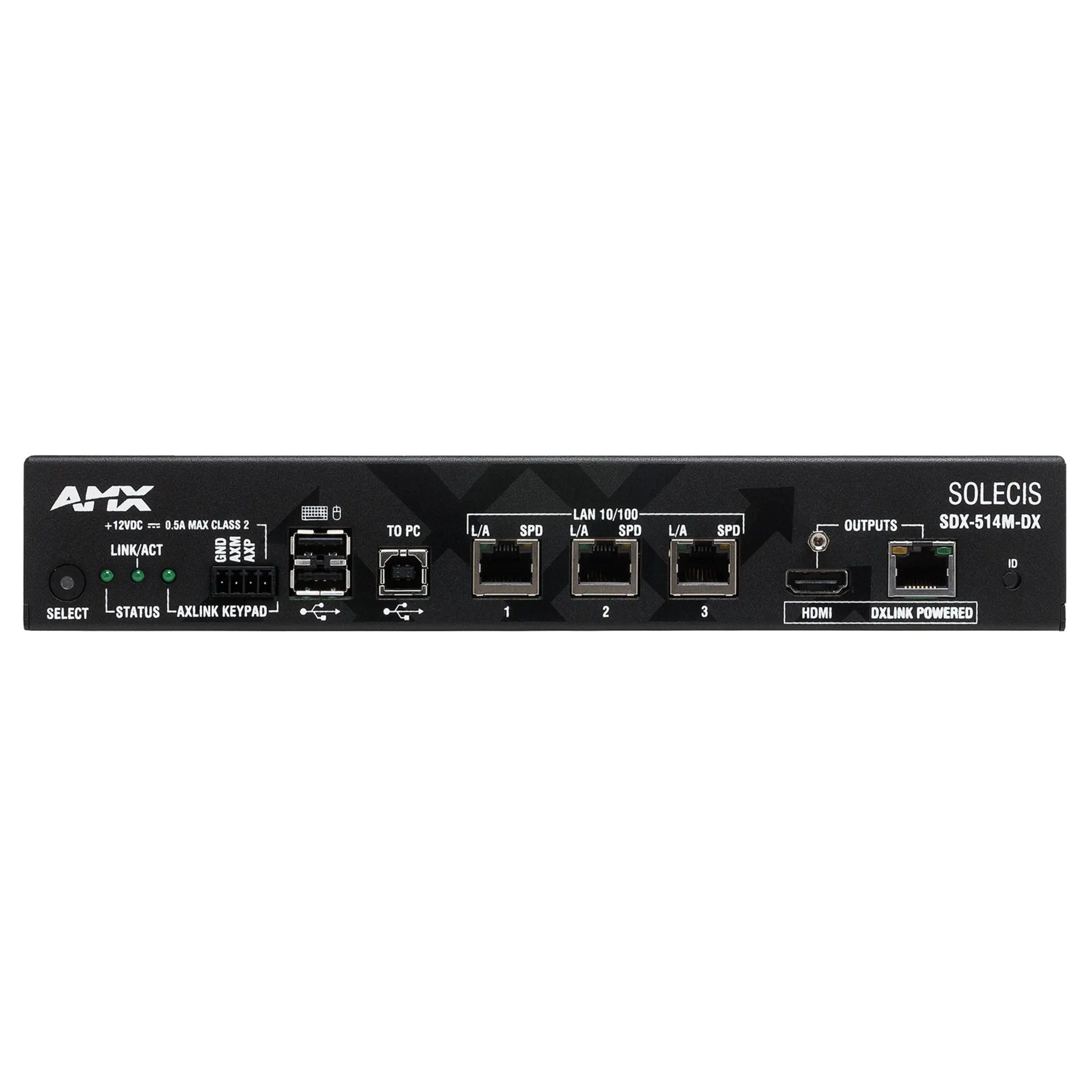

The AMX SDX-514M-DX Solecis is a top - notch small digital AV switcher. It's a 4K and Ultra High Definition (UHD) capable solution, offering five user connection points. With simplified local control, it routes the selected signal to both DXLink and HDMI outputs. This device combines a DXLink Transmitter and a digital switcher into a single, compact form - factor unit, ideal for use at conference tables. **Key Features** - **4K and UHD Support**: Enjoy high - quality video resolution on 4K devices. - **Multiple Connections**: Get all the necessary connections at the conference table, including audio, video, control, and network access. - **No Central Controller Needed**: It provides a cost - effective solution for huddle spaces and classrooms. - **Works with HydraPort Modules**: Offers an elegant installation in a table or lectern. - **AxLink Keypad Support**: Forwards keypad commands to a central controller over Ethernet, eliminating the need for a separate AxLink cable. **Technical Specifications** - **Audio Video Switching**: 5x1 (dual) audio/video switching, routing any of 5 inputs to HDMI and DXLink outputs simultaneously. - **Video Inputs**: (2) HD15 (supports RGBHV), (3) HDMI (supports HDMI/HDCP). - **Video Outputs**: (1) HDMI (supports HDMI/HDCP), (1) DXLink (supports digital video, audio, Ethernet, and bi - directional control). - **4K Resolution Support**: 3840 x 2160p @ 24/25/30 Hz, 4096 x 2160p @ 24/25/30 Hz, 3840 x 2160p @ 60 Hz, 4:2:0, 4096 x 2160p @ 60 Hz, 4:2:0. - **Audio Format Support**: Dolby TrueHD, Dolby Digital, DTS - HD Master Audio, DTS, 2 CH through 8 CH L - PCM; Dolby Digital and DTS support up to 48kHz, 5.1 channels. - **Audio Inputs**: (4) HDMI connections for digital audio. - **AxLink Keypad Port**: (1), 4 - pin 3.5 mm captive - wire connector, powers and provides data to up to 2 external AxLink Keypads. - **Ethernet Connections**: (3) RJ - 45, 10/100 Port for TCP/IP communication; Auto MDI/MDI - X enabled port for either cable type. LEDs show communication details. - **Dimensions**: 1 11/16” x 10” x 7” (42.16 mm x 253.8 mm x 177.8 mm). - **Compatible Products**: Enova DGX 800/1600/3200/6400 with DGX - I - DXL - 4K board, DX - RX - 4K, DXLink 4K HDMI Receiver Module. - **MyTurn Source Selection**: Use with MyTurn Source Selector Buttons and Receiver. A HydraPort 2 - Button Keypad Module can switch multiple connections. - **FG Numbers**: FG1010 - 355

Using the AMX SDX-514M-DX Solecis is quite easy. First, connect your devices to the appropriate input ports. You can use the HD15 ports for RGBHV signals and the HDMI ports for HDMI/HDCP signals. Once your devices are connected, use the simplified local control to select the signal you want to route to the DXLink and HDMI outputs. If you're using AxLink keypads, they'll forward commands to the central controller over Ethernet. When it comes to maintenance, keep the device clean and free from dust. Make sure the Ethernet connections are stable and the cables are in good condition. If you encounter any issues, check the LEDs on the Ethernet ports to see the communication status. Some important things to note: Don't overload the device with too many connections. When using the MyTurn Source Selection, ensure that the MyTurn Source Selector Buttons and Receiver are properly installed. Also, be careful when handling the AxLink Keypad Port as it's a 4 - pin 3.5 mm captive - wire connector. Follow these steps and tips, and you'll get the most out of your AMX SDX-514M-DX Solecis switcher.
