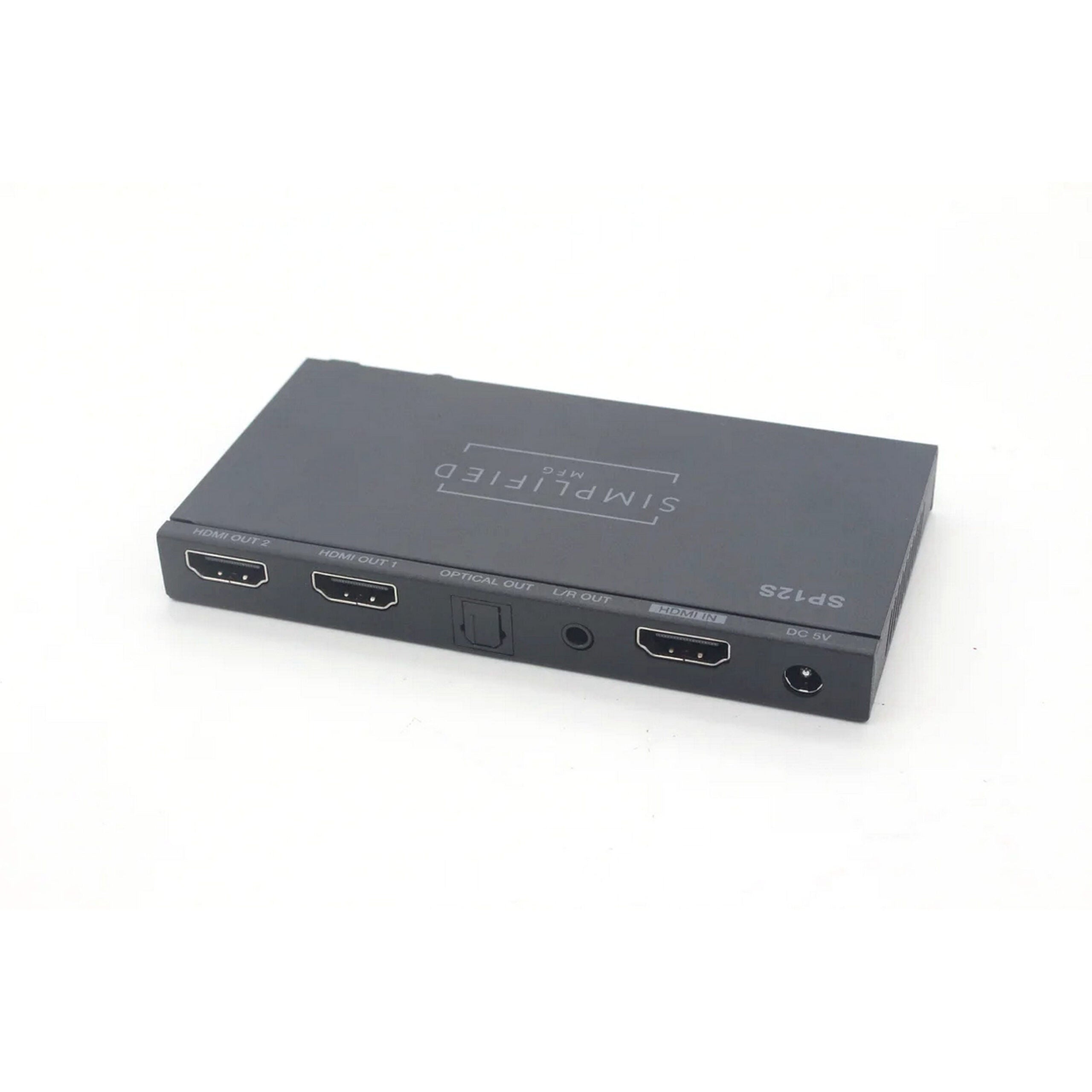

The Simplified MFG SP12S is a top - notch HDMI splitter designed to split a single HDMI input into two outputs. Whether your displays are identical or not, it can handle the task with ease. With HDCP 2.2, EDID, and an audio breakout, it's a versatile solution. For 1080p and 4K displays, it ensures each gets the right signal. You can even manipulate EDID for multiple displays. There's also an optical SPDIF/3.5mm mini jack for audio. It supports the latest HDMI 2.0b features like HDR8/10/10+ and Dolby Vision. Key features include compliance with HDMI2.0, HDCP2.2, and DVI 1.0. It supports various video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2 and 4k2k@60Hz with 12bit YCBCR 4:4:4. You can select EDID settings and choose scaling for each output. It has both SPDIF and 3.5mm Mini jack audio breakout. It supports high - resolution VESA mode, LPCM 7.1CH, Dolby TrueHD, and DTS - HD Master Audio, and comes with a 3 - Year Warranty. Technical specs: Video bandwidth is 600MHz/18Gbps, it has 1 HDMI Type A input and 2 HDMI Type A outputs along with 1 L/R 3.5mm mini jack and 1 Optical SPDIF. Output resolution ranges from 480i~1080p 50/60Hz to 4Kx2K 24/25/30/50/60Hz. It has ESD protection, runs on 5V/1A DC power, and has a metal chassis. Operating temperature is 0°C - 40°C (32°F - 104°F), storage temperature is - 20°C - 60°C (- 4°F - 140°F), and relative humidity is 20 - 90% RH (non - condensing).

Using the Simplified MFG SP12S HDMI splitter is easy. First, connect your HDMI source to the single input port. Then, connect your two HDMI displays to the output ports. If you want to split the audio, use the 3.5mm mini jack or the optical SPDIF. You can select different EDID settings and scaling options according to your needs. When it comes to note - taking, make sure the power supply is stable, and the device is used within the recommended temperature and humidity range. For maintenance, keep it clean. You can use a soft, dry cloth to wipe the surface. Don't expose it to extreme conditions. If there are any issues, refer to the 3 - year warranty and contact the manufacturer for support.
