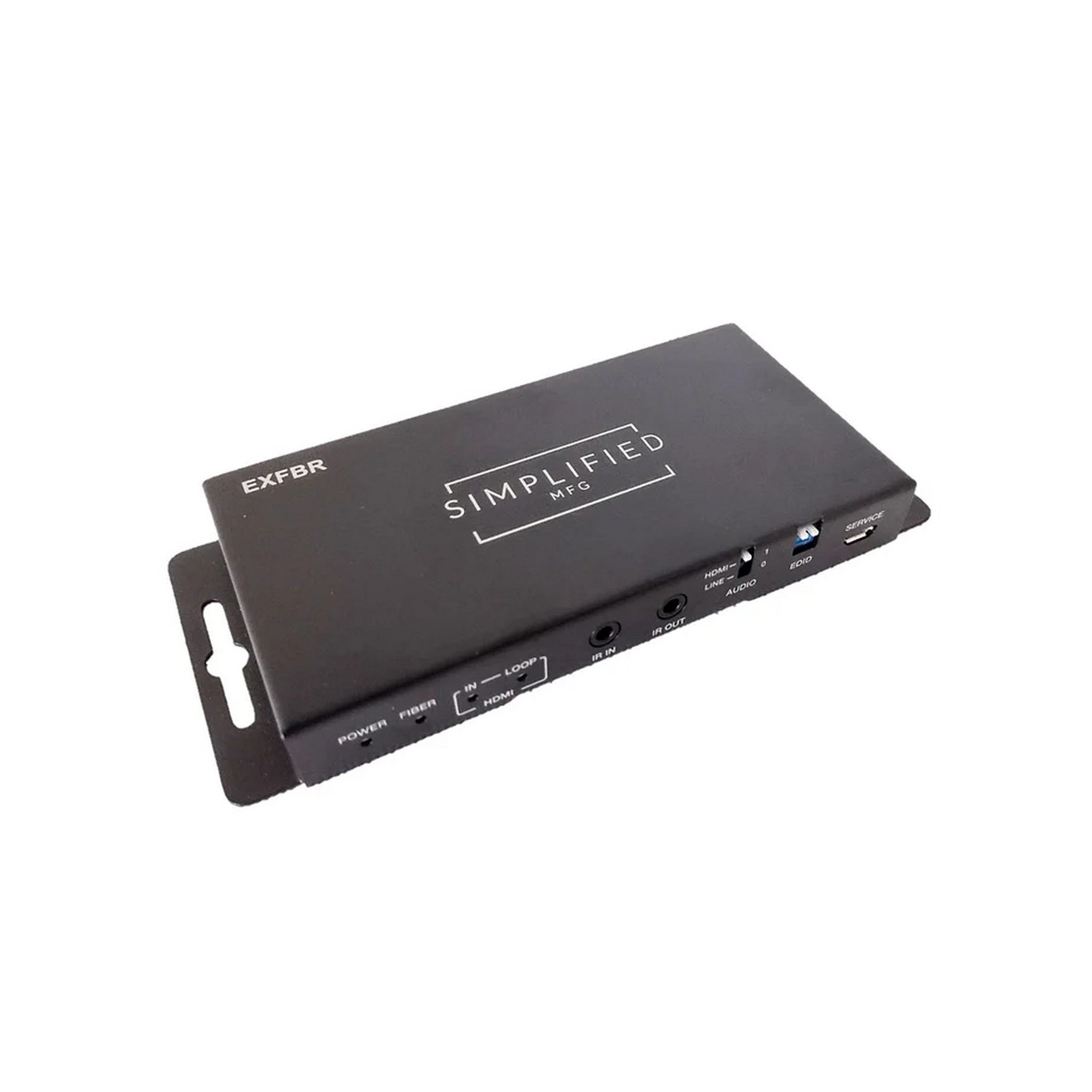

The Simplified MFG EXFBR 18Gbps HDMI Fiber Extender is an outstanding device. It can transmit your HDMI signal up to 10,000 meters over single - mode fiber to a compatible HDMI 2.0b display. This extender supports HDR8/10/10+ and Dolby Vision, meeting the entire HDMI 2.0b standard. It also features bi - directional infrared control, RS232, audio insertion or pass - through, and EDID management. The kit comes with SFP modules. Key features include HDMI 2.0b (18Gbps), HDCP 2.2, high video resolutions up to 4K2K@50/60Hz (YUV444), and support for various audio formats. It has a long transmission distance of 10,000 meters/33,000 Ft. on single - mode fiber.

Using the Simplified MFG EXFBR HDMI Extender is easy. First, connect the extender to your HDMI source and the compatible HDMI 2.0b display using the single - mode fiber cable provided in the kit. Make sure to plug in the SFP modules correctly. For infrared control, point your remote at the relevant part of the extender. When using RS232 control, set the appropriate baud rate within the 4800 - 115200bps range. As for audio, you can choose to insert or pass it through as needed. Regarding power, use the provided power supply with an input of AC100 - 240V 50/60Hz. Keep the device in an environment with a temperature between 32 - 104 Degrees F (0 - 40 Degrees C) and relative humidity of 20 - 90% without condensation. Avoid exposing it to static electricity as it has ESD protection of ±8kV (air - gap discharge) and ±4kV (contact discharge). To maintain the device, keep it clean and store it at a temperature between - 4 - 140 Degrees F (- 20 - 60 Degrees C) when not in use.
