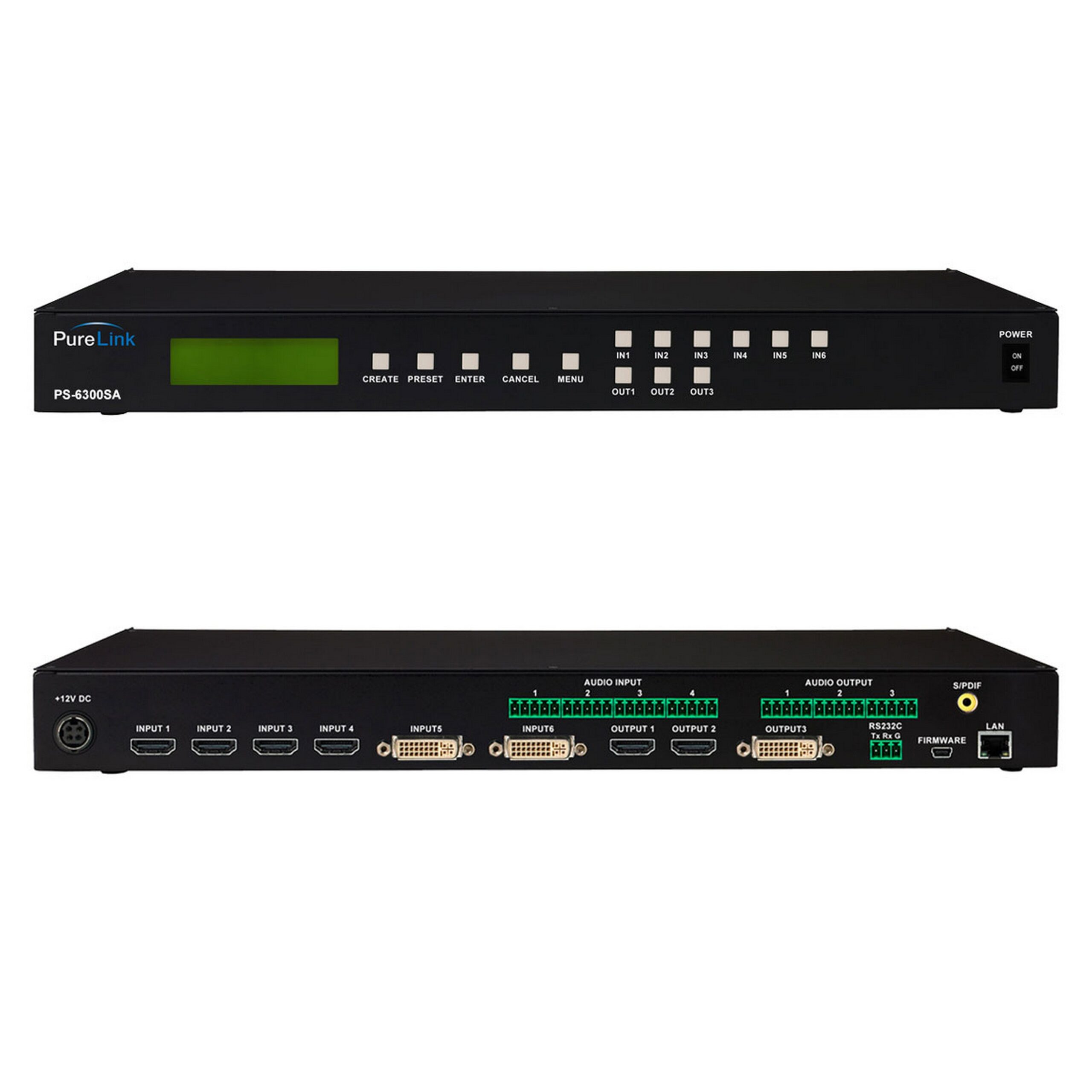

The PureLink PS - 6300S is a top - notch all - in - one presentation switcher. It comes with a built - in scaling engine that can up - scale or down - scale any video signal. Also, it uses PIP (picture - in - picture) technology, enabling you to display two video sources on a single screen. With PureLink’s Don’t Blink Seamless Switching Technology at each output, it offers smooth switching. The user - friendly configuration and operation make it super convenient for any multimedia presentation. Key features include being an all - in - one device (matrix switcher, scaler, analog to digital converter, amplifier, and audio DSP), auto - scaling with seamless switching, PIP image insertion, advanced EDID management, and RS - 232/LAN control. Technical specs: It supports balanced/un - balanced analog audio and S/PDIF digital audio. Input and output signal types are HDMI and DVI. It can handle resolutions up to 1080p@60Hz, compliant with HDMI 1.3 and DVI 1.0. It has RS - 232 and IR extension. Power consumption is 60 Watts, with a DC 12V 5A power supply. Operating temperature ranges from 32°F to 117°F (0°C to 47°C), storage temperature from - 40°F to 158°F (- 40°C to 70°C), and relative humidity from 0 to 90% non - condensing. MTBF is 50,000 hours. It has a standard 19 - inch rack - mountable all - metal black powder - coated enclosure, with dimensions of 19” (W) x 8.0” (D) x 1.75” (H) and weighs 6.7 lbs. It comes with a 3 - year limited warranty.

Using the PureLink PS - 6300S is easy. First, connect your video sources to the input ports (HDMI or DVI) and your display to the output ports. You can use the RS - 232 or LAN for control. To use the PIP feature, select the two video sources you want to display. When it comes to auto - scaling, the switcher will automatically adjust the video signal for the best display. Remember to keep the device in an environment with a temperature between 32°F and 117°F and relative humidity from 0 to 90% non - condensing. Avoid exposing it to extreme temperatures or humidity. For maintenance, keep the device clean. You can use a soft, dry cloth to wipe the enclosure. If there are any issues, refer to the user manual or contact customer support. The 3 - year limited warranty gives you peace of mind during use.
