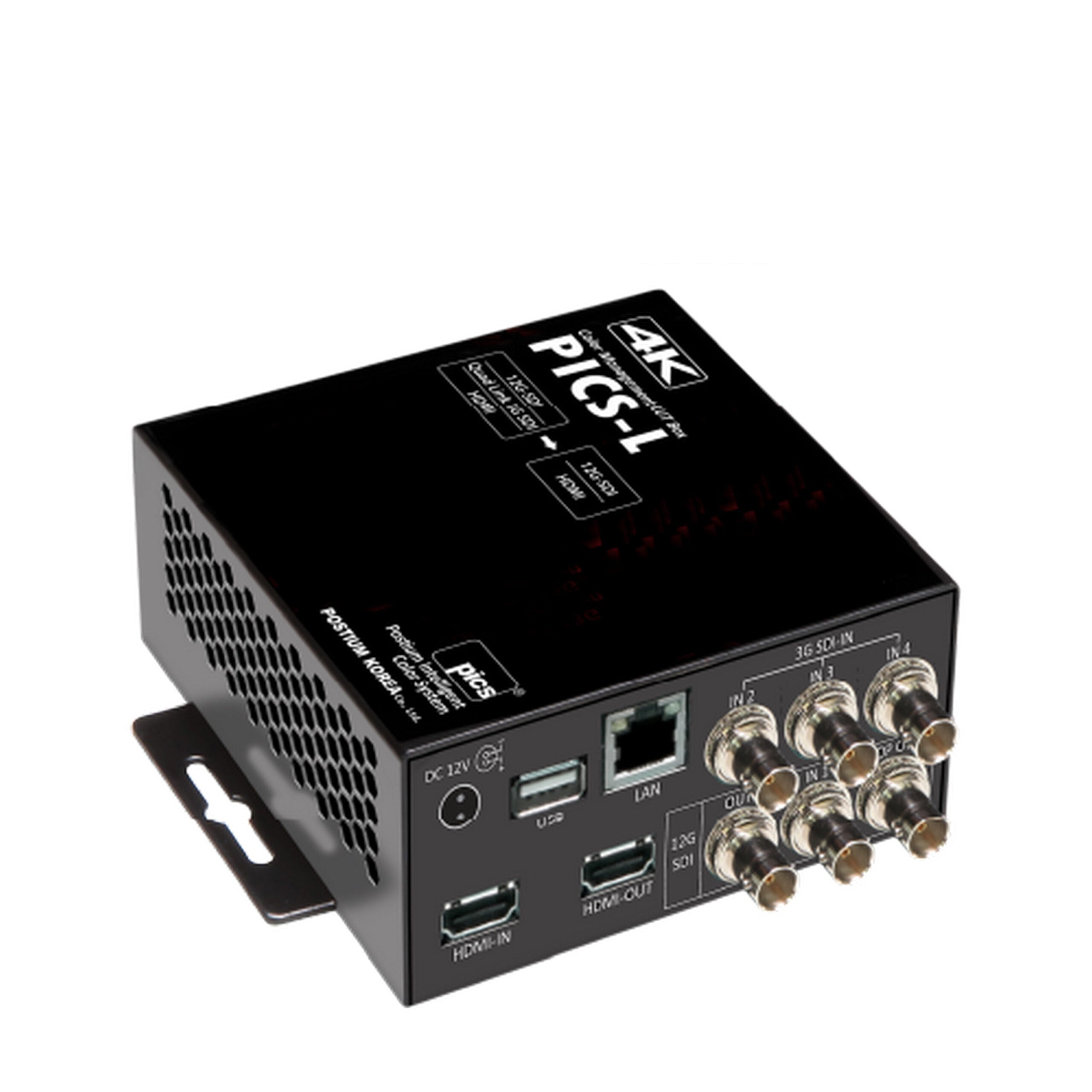

The Postium PICS-L is an outstanding stand-alone unit for colorspace, resolution, and signal format processing. It works with our PICS control software on a connected PC. This box is great for profiling and calibrating displays. It can create, convert, and apply 3D LUTs to make multiple display technologies match in image monitoring workflows. The PICS-L supports 4K and HD up/down-conversion. It accepts 12G-SDI single link, 3G quad link, and HDMI video inputs and outputs to 12G-SDI single link and HDMI. You can select 3D LUTs from 1 to 10 by importing ".Cube" files. The system control is user - friendly. You can back up by exporting/importing setting data to a PC, which makes system building a breeze. The technical specs include 4 x BNC (1 x 12G SDI, 3 x 3G SDI) and 1 x HDMI 2.0 for input, 2 x BNC (1 x 12G SDI, 1 x 12G SDI Loop Out) and 1 x HDMI 2.0 for output. It also has 1 x LAN in, 1 X USB MEMORY STICK, and 1 X RJ45 for power. Its dimensions are 110 x 137 x 44mm (4.33 x 5.93 x 1.73 inch) and it weighs 300g (0.66 Ibs).

Using the Postium PICS - L is easy. First, connect it to your PC with the LAN cable and make sure the PICS control software is installed on the PC. Then, connect your video sources to the input ports like 12G - SDI or HDMI. For 3D LUT selection, just import the ".Cube" files into the appropriate slots from 1 to 10. When you're happy with the settings, you can export the data to your PC as a backup. When handling the unit, be gentle as it's a precision device. Keep it in a clean and dry place. For maintenance, you can use a soft, dry cloth to wipe the exterior. If there are any issues, refer to the user manual or contact our support team.
