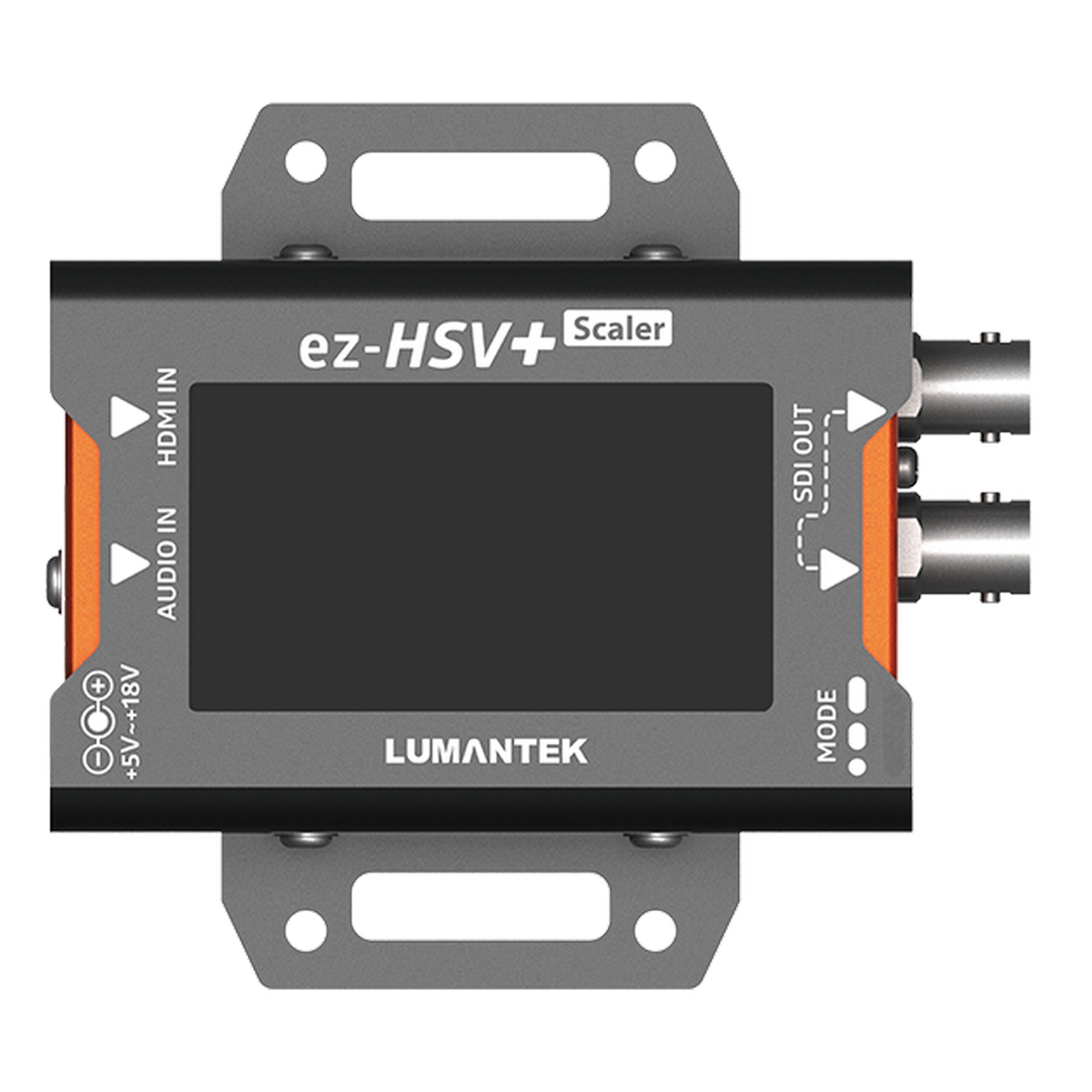

The Lumantek ez-HSV+ HDMI to SDI Converter with Display is a game-changer for video monitoring. With it, you can easily monitor HDMI video and check features like the audio bar, incoming and scaled-out resolutions. It also has the ability to embed external audio, making it super convenient for planning your production. Enjoy 24/7 video monitoring through its 2.7-inch TFT LCD screen, which shows the incoming video and in/output source resolution. Check the sound via the audio level meter on the screen and say goodbye to audio worries. This converter has low power consumption, with a maximum of less than 3 watts and an acceptable voltage range from 5v to 18v. You can even use a power bank. All ez-Converters come with an AC/DC power adaptor with three replaceable plug types, making your work easy anywhere. It supports various analog audio and HDMI video inputs, as well as different SDI video outputs with specific video formats. It has a DC power input, DIP switch, mode push switch, and a 2.7-inch TFT LCD display. The power input ranges from DC +5V to +18V, and the power consumption is 4W (max.). It operates at a temperature of 0 - 45 deg C, with dimensions of 86.3 x 57.2 x 26.6 mm (including connector) and a weight of 0.3 kg (0.66 lbs).

Using the Lumantek ez-HSV+ HDMI to SDI Converter with Display is easy. First, connect the HDMI video source to the HDMI input of the converter. If you want to add external audio, use the stereo jack for analog audio input. Connect the converter to a power source within the 5V - 18V range. You can use a power bank if you're on the go. Once powered on, the 2.7-inch TFT LCD screen will show the incoming video and the in/output source resolution. You can check the audio level using the audio level meter on the screen. To select different video formats, use the DIP switch. For menu selection and turning the LCD on/off, use the mode push switch. When using it, make sure the operating temperature is between 0 and 45 degrees Celsius. Avoid exposing it to extreme heat or cold. For maintenance, keep it clean and dry. If there's dust, gently wipe it with a soft cloth. That's all you need to know to get the most out of your converter.
