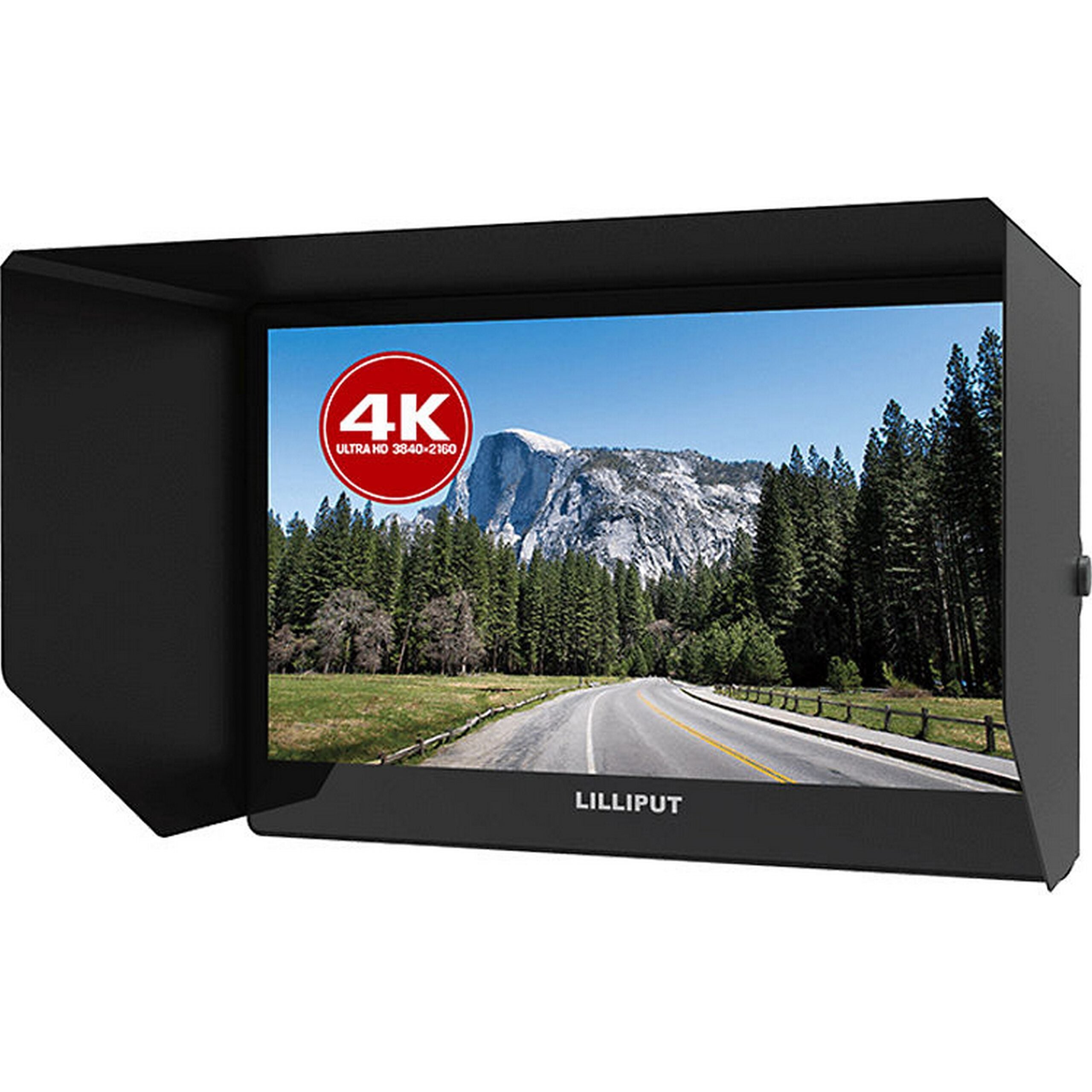

The Lilliput A12 is a sleek and compact 12.5-inch Ultra HD 4K broadcast monitor that simplifies HD and UHD 4K workflows. It comes with built-in tools like Quad View, False Color, Peaking, Image Flip, Over and Underscan, making it a powerful choice for professionals. With three HDMI 1.4 and one HDMI 2.0 inputs, along with 3G-SDI and DisplayPort 1.2, it offers great input adaptability. The 12.5-inch 8-bit IPS display screen has a 16:9 aspect ratio, a 1500:1 contrast ratio, and a super bright 400 cd/m² screen with a physical resolution of 3840 x 2160. It also features four 1/4”-20 threads around the edge for various mounting options and includes a V-mount battery plate for long-life operation in the field. Key features include a 12.5” 8-bit IPS display, a 3840 x 2160 resolution, a 16:9 aspect ratio, 400 cd/m² brightness, a 1500:1 contrast ratio, 170-degree viewing angles (H/V), multiple input options, useful built-in tools, and a light and slim 21mm design. Technical specifications cover video inputs (1 x BNC, 3G-SDI, 1 x HDMI type A, v2.0, 3 x HDMI type A, v1.4, 1 x DisplayPort, v1.2), video output (1 x BNC, 3G-SDI), audio output (1 x 3.5 mm headphone, 2 x speakers), input voltage (7 to 20 VDC), power draw (12 VDC, 1.3 A), operating temperature (-4 to 122 Degrees F / -20 to 50 Degrees C), storage temperature (-22 to 158 Degrees F / -30 to 70 Degrees C), dimensions (11.7 x 7.7 x 0.9” / 29.8 x 19.5 x 2.2 cm), weight (2.1 lb / 960 g), screen size (12.5” / 31.8 cm), aspect ratio (16:9), resolution (3840 x 2160), viewing angle (170 Degrees / 170 Degrees (H/V)), brightness (400 cd/m²), contrast ratio (1500:1), backlight (LED), and it includes the Lilliput A12 12.5” 4K monitor, sun hood, HDMI 2.0 cable, shoe mount, D-Tap power cable, V-Mount plate, power supply, and a limited 1-year warranty.

Using the Lilliput A12 monitor is easy. First, connect your video source to one of the available inputs like HDMI or 3G - SDI. You can switch between different inputs using the on - screen menu. To use the built - in tools such as Quad View or False Color, just navigate through the menu and select the desired option. When mounting the monitor, you can use the 1/4” - 20 threads around the edge with appropriate mounts. If you're using it in the field, attach a V - mount battery to the included V - mount plate for long - lasting power. As for maintenance, keep the screen clean with a soft, dry cloth. Avoid using harsh chemicals. Store the monitor in a cool, dry place within the recommended storage temperature range (-22 to 158 Degrees F / -30 to 70 Degrees C). Don't expose it to extreme temperatures or humidity. And always follow the safety instructions when handling the power supply and cables. Remember, the monitor comes with a 1 - year warranty, so if you have any issues, reach out to the support team.
