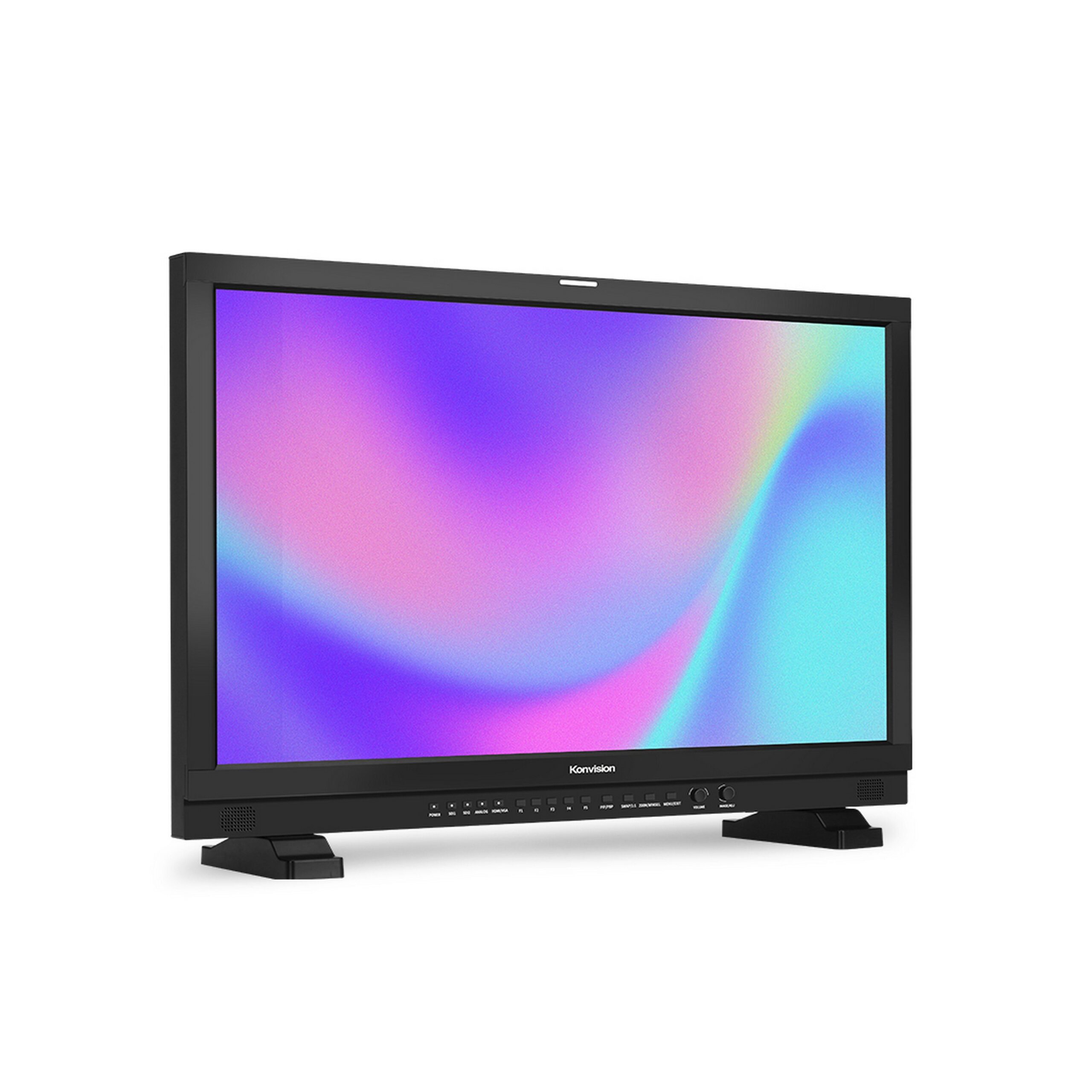

The Konvision KVM-2450W is a 24-inch multi-functional broadcast monitor supporting all video formats. It comes with professional broadcast features like waveform, vectorscope, and audio meter. Ideal for color grading, production, post - production, editing, and use in studios and OB trucks. With 3D LUT Color Calibration, it's compatible with ColorSpace and Calman calibration software and uses a K10 - A probe for precise color. It also works with common colorimeters. The Darkness Check feature enhances brightness and contrast in dark areas to show more shadow details. The Part Zoom In function lets you closely examine any part of the picture. PIP & PBP allow simultaneous display of two SDI signals or one SDI with another signal, and the images can be freely swapped. Pixel Measurement gives real - time Y&RGB values of selected pixels. SDI supports waveform, vectorscope, and histogram display, with waveform alarm for over - exposed areas. False Color helps check image exposure without external equipment. Focus Assist marks sharp edges in red, and Zebra stripes show over - exposed areas. Picture Flip is useful for studio programs. Key features include a 1920x1200 resolution 10 - Bit LCD panel, 3G - SDI 4:4:4 12 - Bit signals, multiple input and output options, and more. Technical specs include a 24 - inch panel, FHD 1920x1200 resolution, wide viewing angles, and support for various SDI formats. It has audio in/out options, a built - in speaker, and operates within a temperature range of - 10 to 50 degrees Celsius with power options of DC 12V and AC 100 - 240V 50/60Hz.

Using the Konvision KVM-2450W is straightforward. First, connect your device to the appropriate input ports according to your signal type, like SDI, HDMI, or DVI. Power it on using either the DC 12V or AC 100 - 240V 50/60Hz option. You can start adjusting settings like brightness, contrast, and color calibration right away. For color calibration, use the compatible ColorSpace or Calman software with the K10 - A probe. When using features like Part Zoom In, just select the area you want to magnify. PIP & PBP allow you to view multiple signals at once; simply select the signals and adjust their positions and sizes. Remember to keep the monitor in an environment where the temperature is between - 10 and 50 degrees Celsius. Avoid exposing it to direct sunlight or extreme humidity. For maintenance, clean the screen gently with a soft, dry cloth. If there's no signal input for a while, the monitor will enter power - saving mode to save energy. Check the power cord and connections regularly to ensure they are in good condition.
