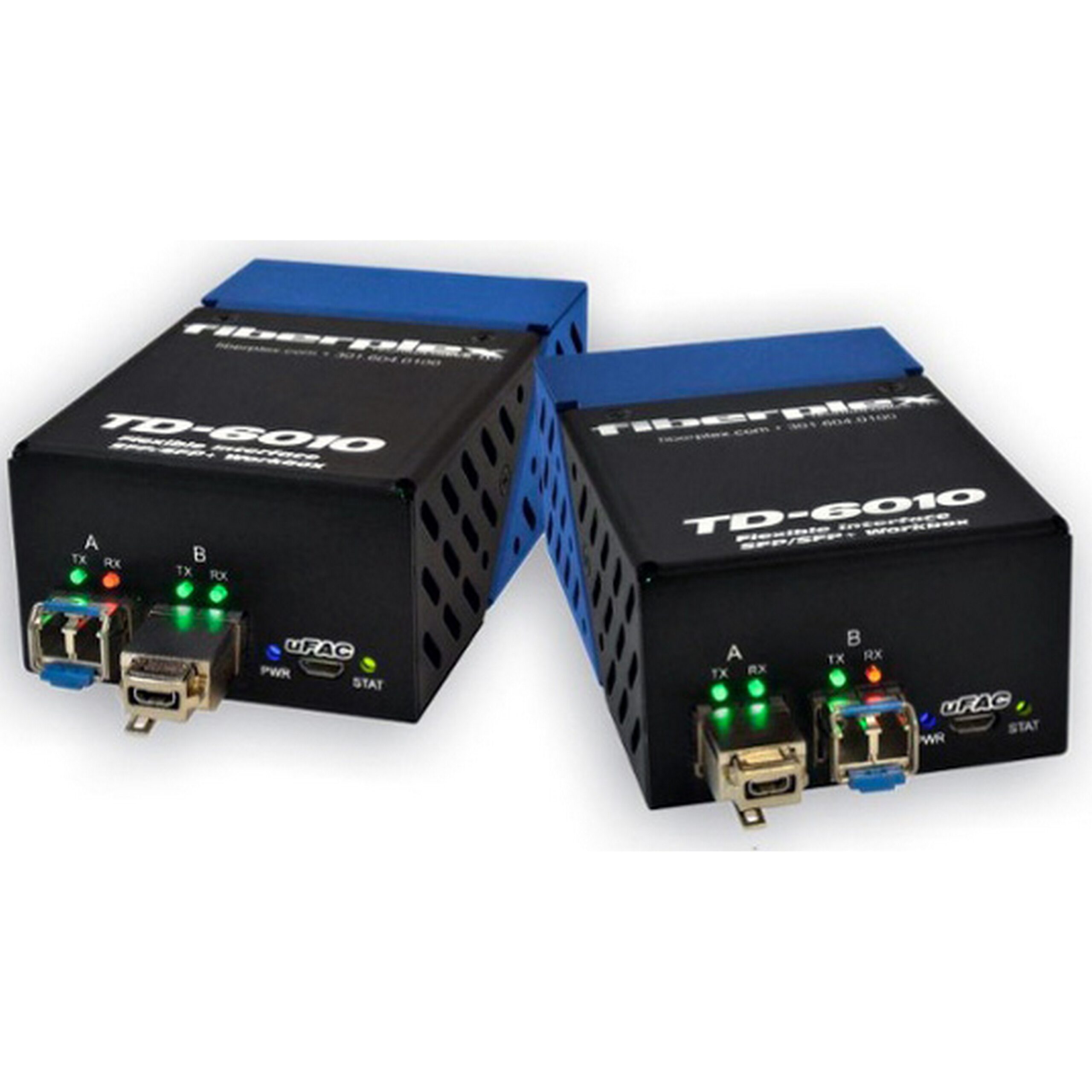

The FiberPlex Technologies 'TKIT' bundles offer an amazing solution. They take the great flexibility of the TD-6010 12.5 Gbps workbox and combine it with a set of application - specific SFP modules. This creates a simple, easy - to - order solution for your specific needs. It also comes with AC Power Adapters. All TKIT boxes have a USB 2.0 Micro - B Connection for monitor control. This USB port is for future functionality to monitor and control the installed SFP, though currently, Fiberplex doesn't have software for it. All fiber connectors are LC duplex, and all TKIT kits come with all the necessary SFPs. Applicable TKITs have HDBNC connections, and HDMI connections use HDMI D (micro - HDMI). Key features include compliance with SMPTE 424M, 292M, and 259M, support for various formats like 25/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.94/60Hz). The HDMI/DVI input supports 24 - bit (3x8 bits), RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4, with a bandwidth of 150Mhz, RGB Range (Full/SMPTE), up to 8 - channel audio de - embedding (PCM), an HDMI 1.4 Type D connector, and HDCP support. You can control it via a serial interface for voltage & temperature monitoring, HDMI/DVI interface configuration, EDID reading, audio mapping, and getting module information. Technical specifications include a storage temperature range of - 40 to 85 degrees C, an operating temperature range of 0 to 50 degrees C, a full - speed USB 2.0 compliant MicroB Device interface, and 2 SFP+ MSA (SFF - 8431, SFF - 8432, SFF - 8433) compliant slots with a data rate of 0 - 12.5 gigabits.

Using this Fiberplex TKIT - HDMI - S TD - 6010 pair is easy. First, connect the AC power adapters to power up the devices. Then, make sure to connect the fiber connectors (which are LC duplex) properly. For the HDMI connections, use the HDMI D (micro - HDMI). When it comes to control, you can use the serial interface for functions like voltage and temperature monitoring. The USB 2.0 Micro - B Connection is there for future use to monitor and control the installed SFP, but currently, there's no software for it. When it comes to storage, keep the device in an environment where the temperature is between - 40 and 85 degrees C. During operation, make sure the temperature stays between 0 and 50 degrees C. As for maintenance, keep the device clean and free from dust. If you encounter any issues with the HDMI/DVI input or other functions, check the connections first and refer to the technical specifications if needed.
